Transit PBX e.com peering switch

A special type of PBX is suitable for building interconnections between operators/carriers. It can operate as an exchange node for equivalent directions or as concentrator processing one-way outbound traffic. It is suitable for both independent peering centers and interest groups of operators/carriers.

Reference installation uses Association of Operators in Digital Telephony as the exclusive exchange point for phone calls.
More information can be found directly on AODT.

The device enables easy and intuitive management of telephone numbers blocks of individual operators, including those borrowed and ported, and of course allows automatic data exchange (import/export/update) using SOAP. Any internal routing tables can be promoted online via DNS server, information about routing availability for respective number can be checked online via SOAP or HTTP GET queries. The main benefit of telco section of the device is that peering switch works as a SBC and effectively hides network topology of individual operators and allows them to detail adapt itself SIP signaling and the conversion of telephone numbers from/to national and international formats. Each operator has at its disposal its own instance and therefore an error in the setting does not affect the operation of the other.

System requirements

For e.com peering switch operation is suitable any Ethernet network with a minimum speed of 100 Mb/s. To seamless integration ensure respective Ethernet connection at the installation site, Internet access and static public IPv4 and/or IPv6 address.
Will suit virtually any server with x86_64 compatible with dual-core processor clocked at 1 GHz and above with at least 2 GiB RAM. With the appropriate configuration we will be happy to assist you.

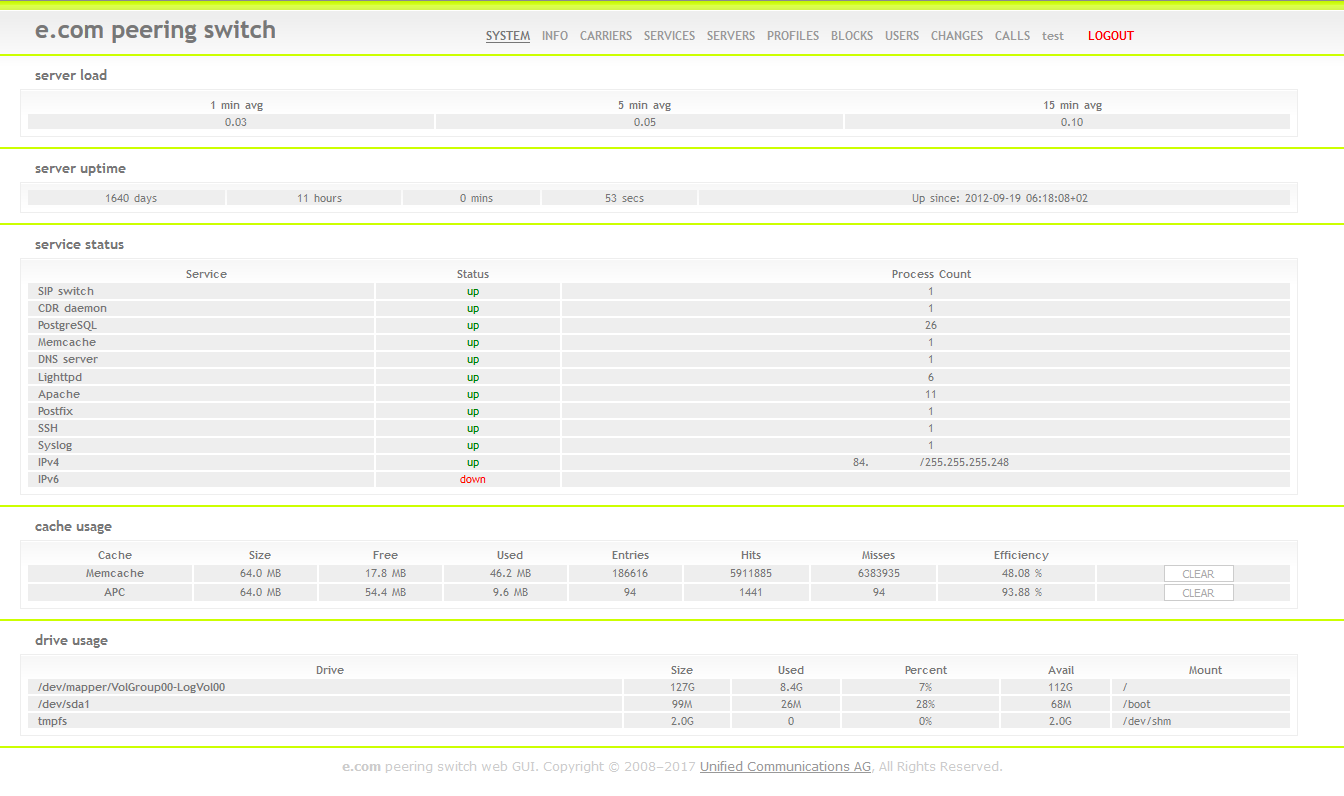

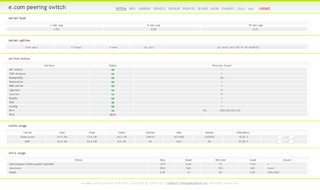

e.com peering switch system

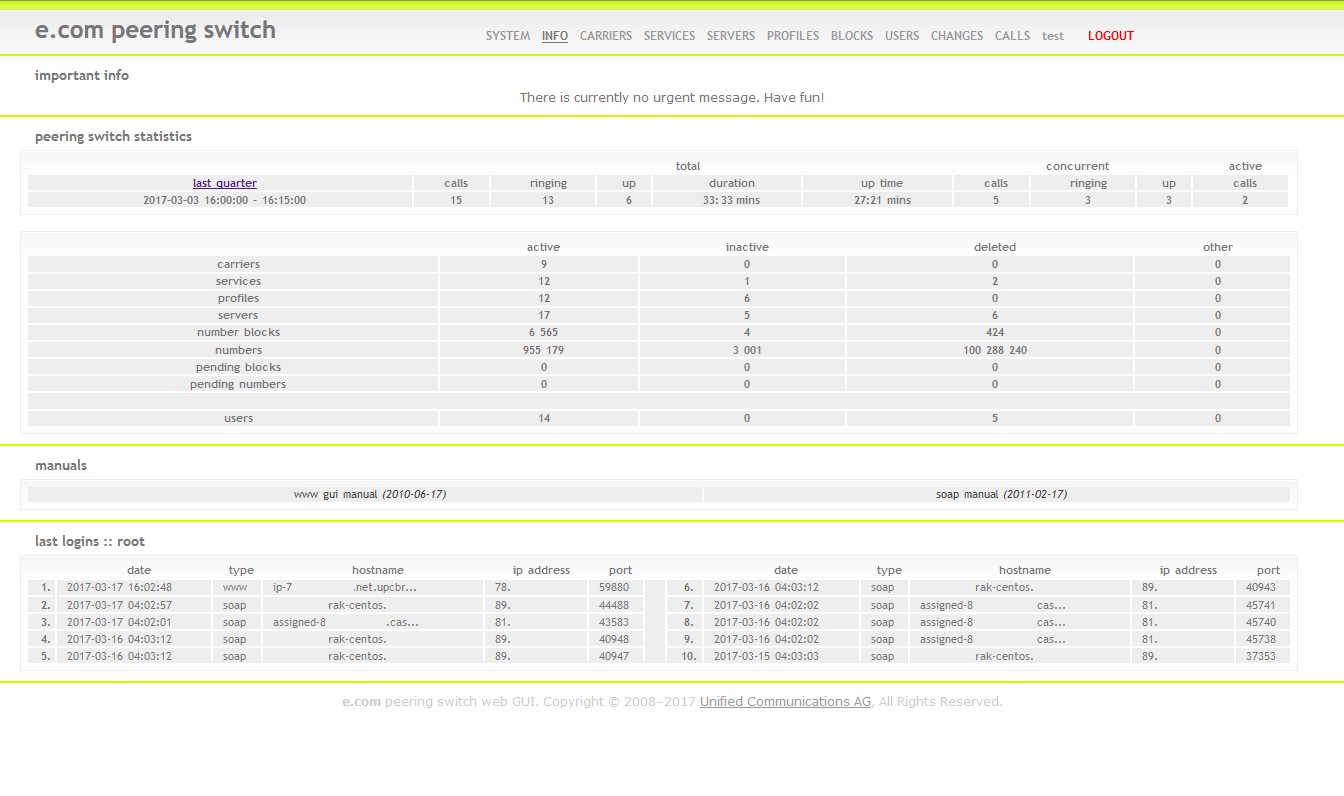

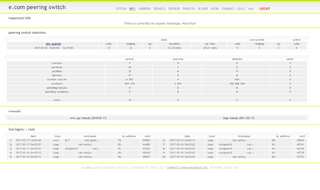

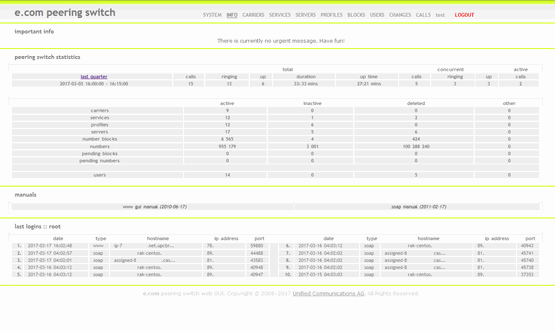

e.com peering switch info

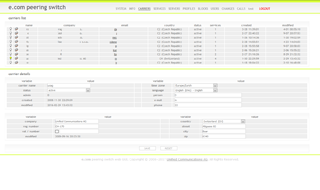

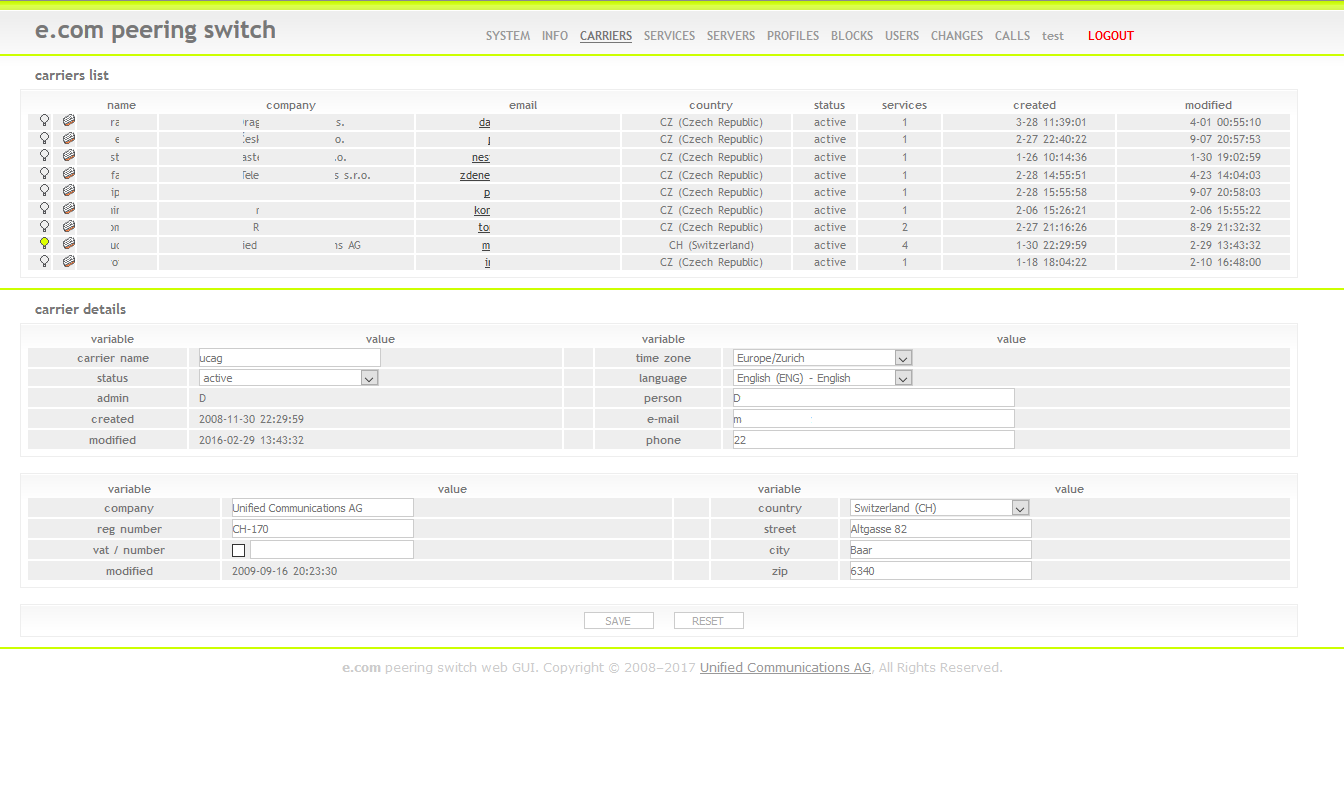

e.com peering switch carriers

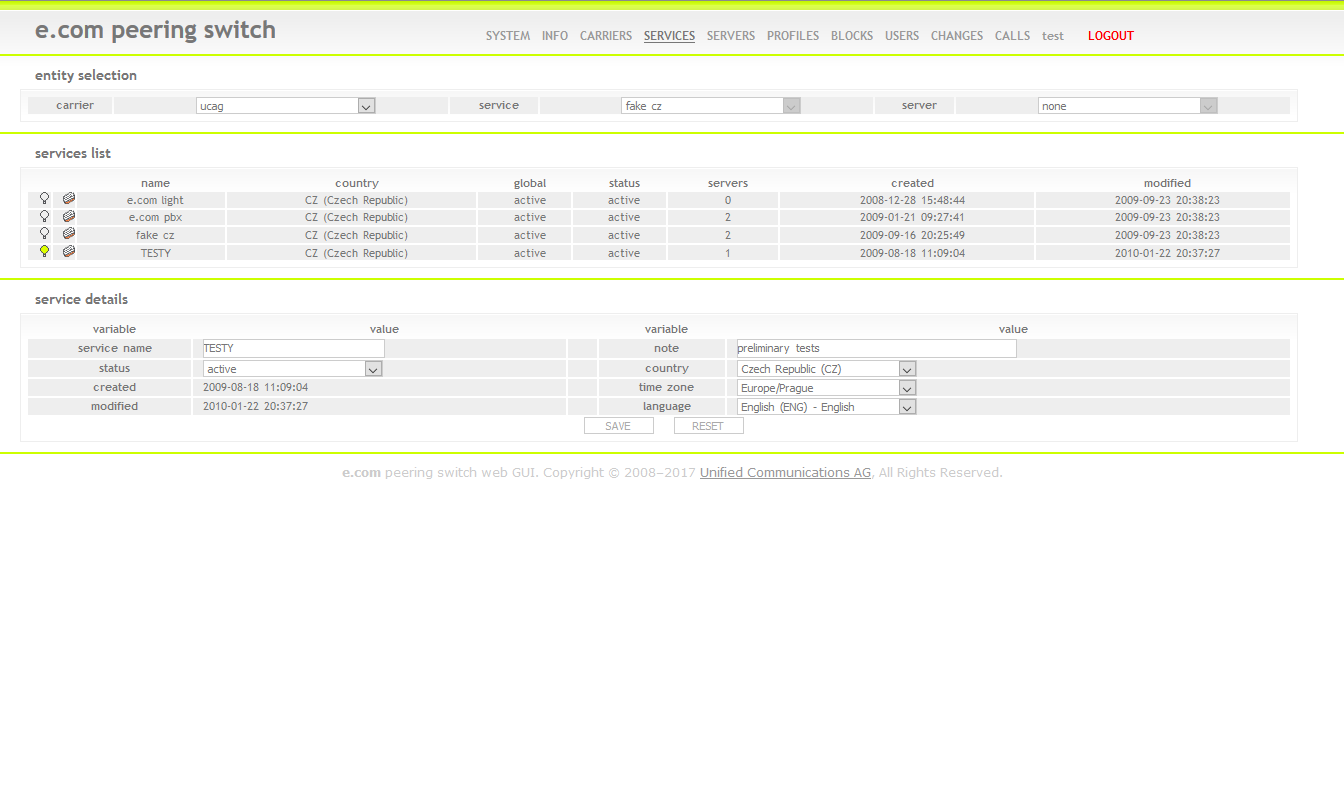

e.com peering switch services

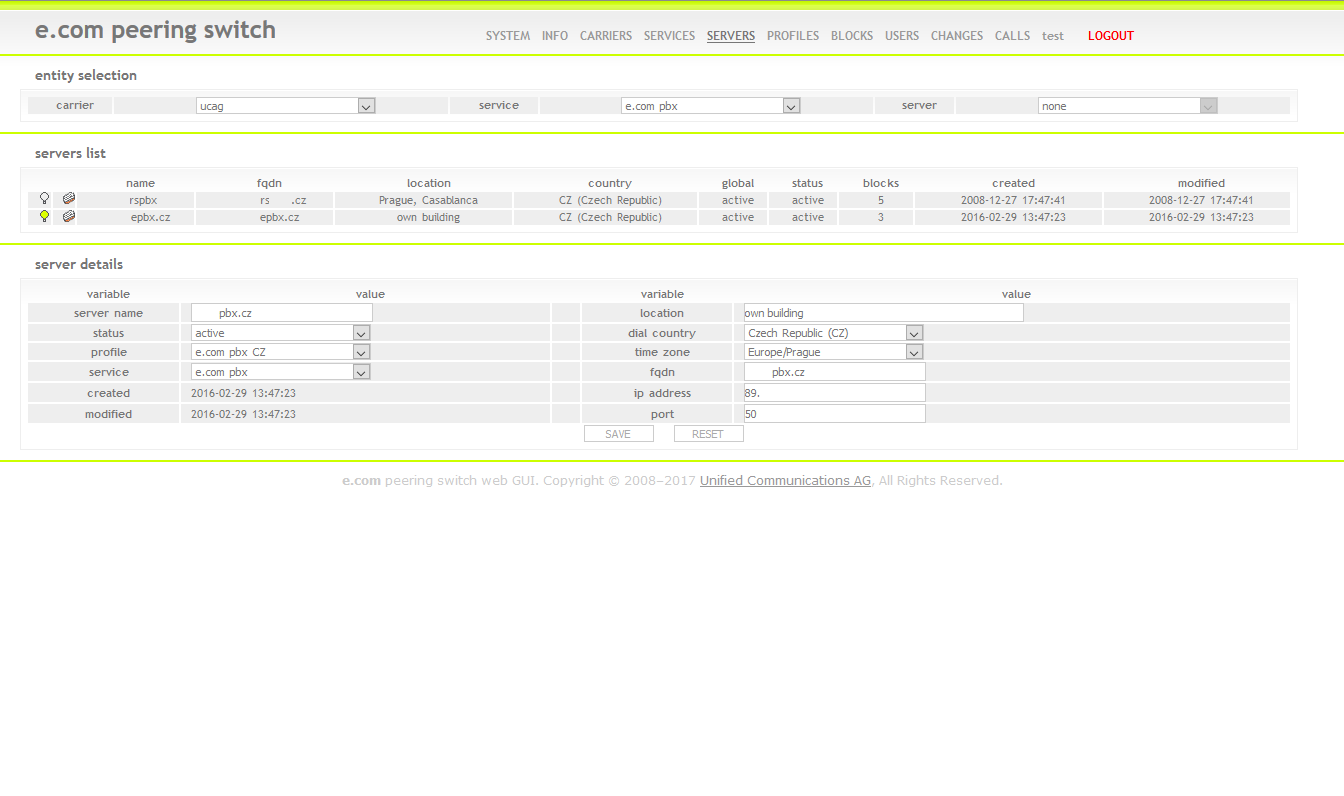

e.com peering switch servers

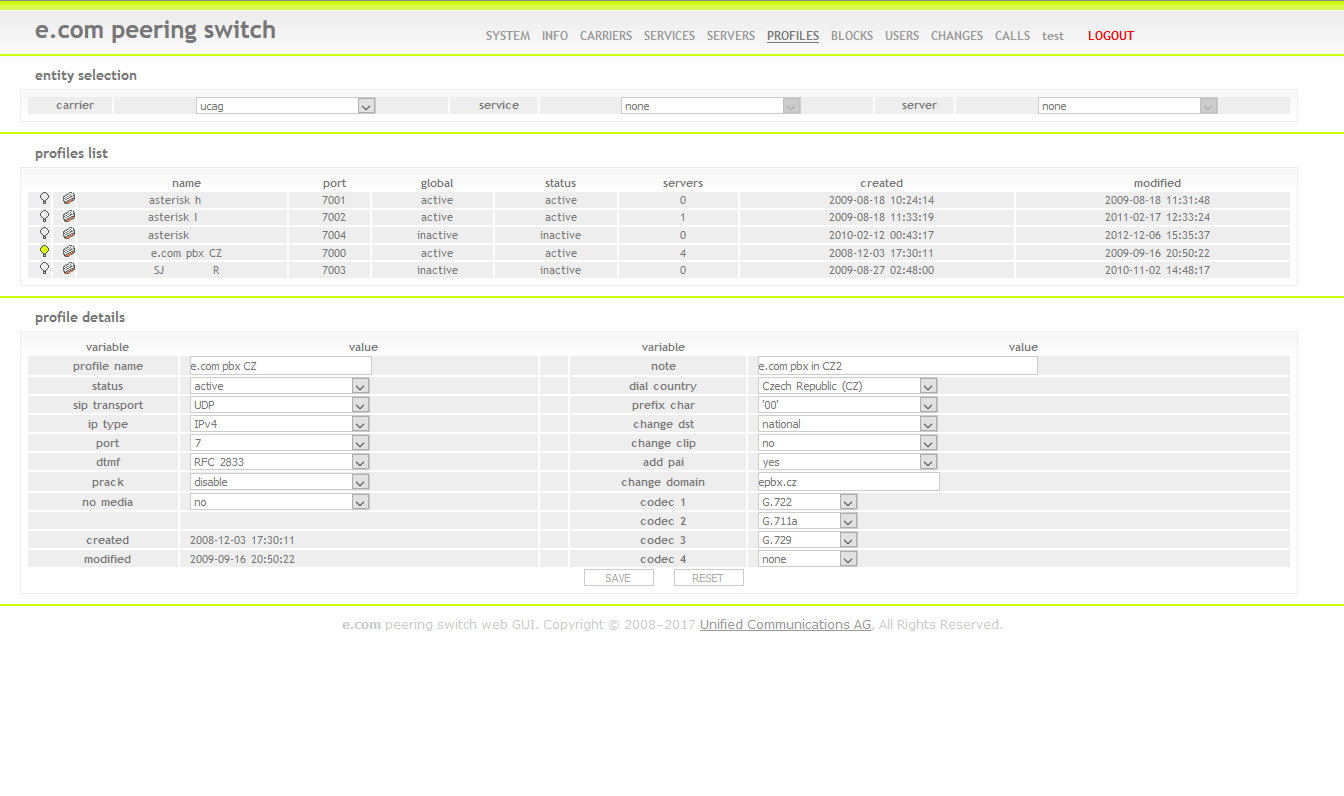

e.com peering switch profiles

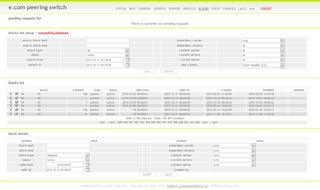

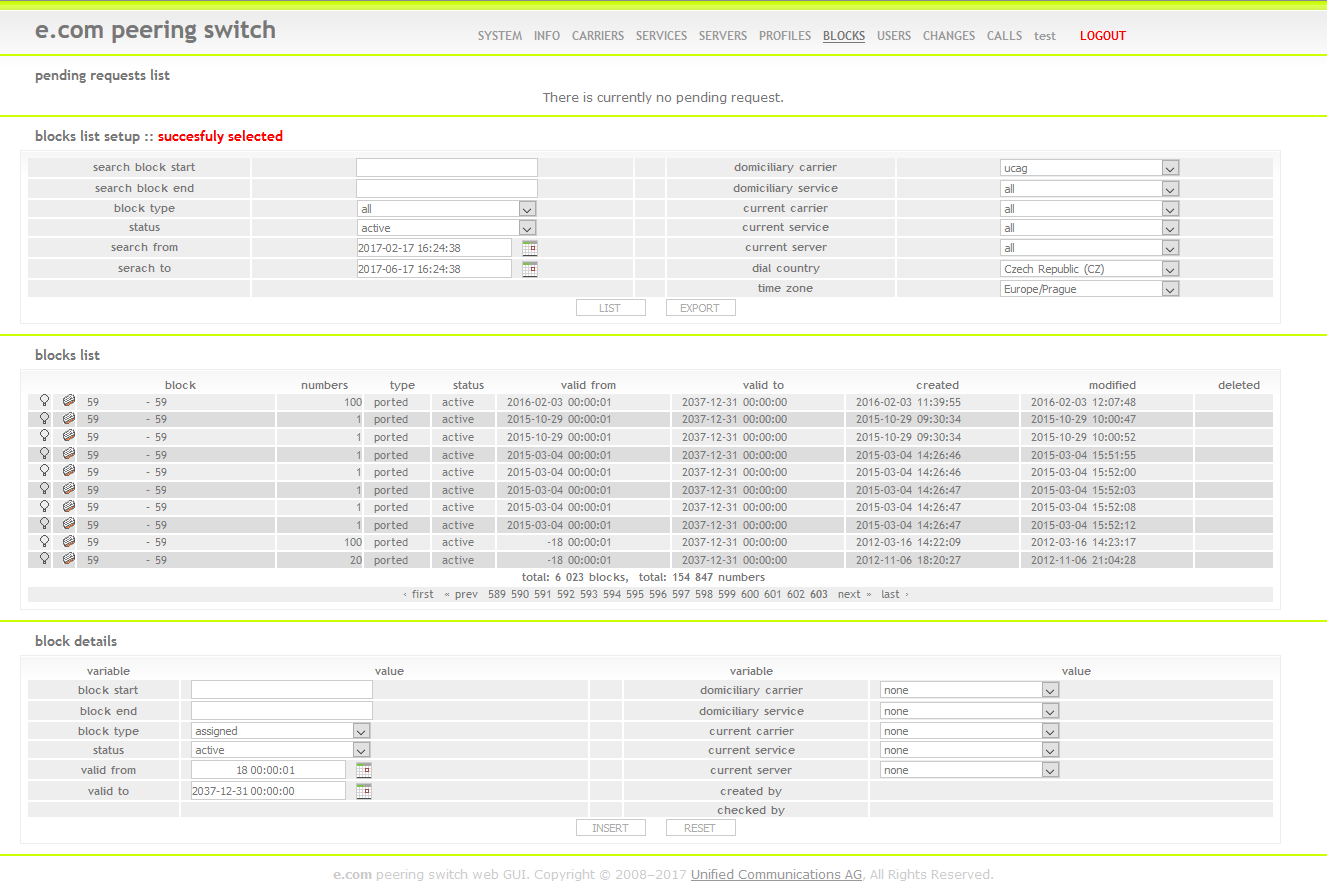

e.com peering switch blocks

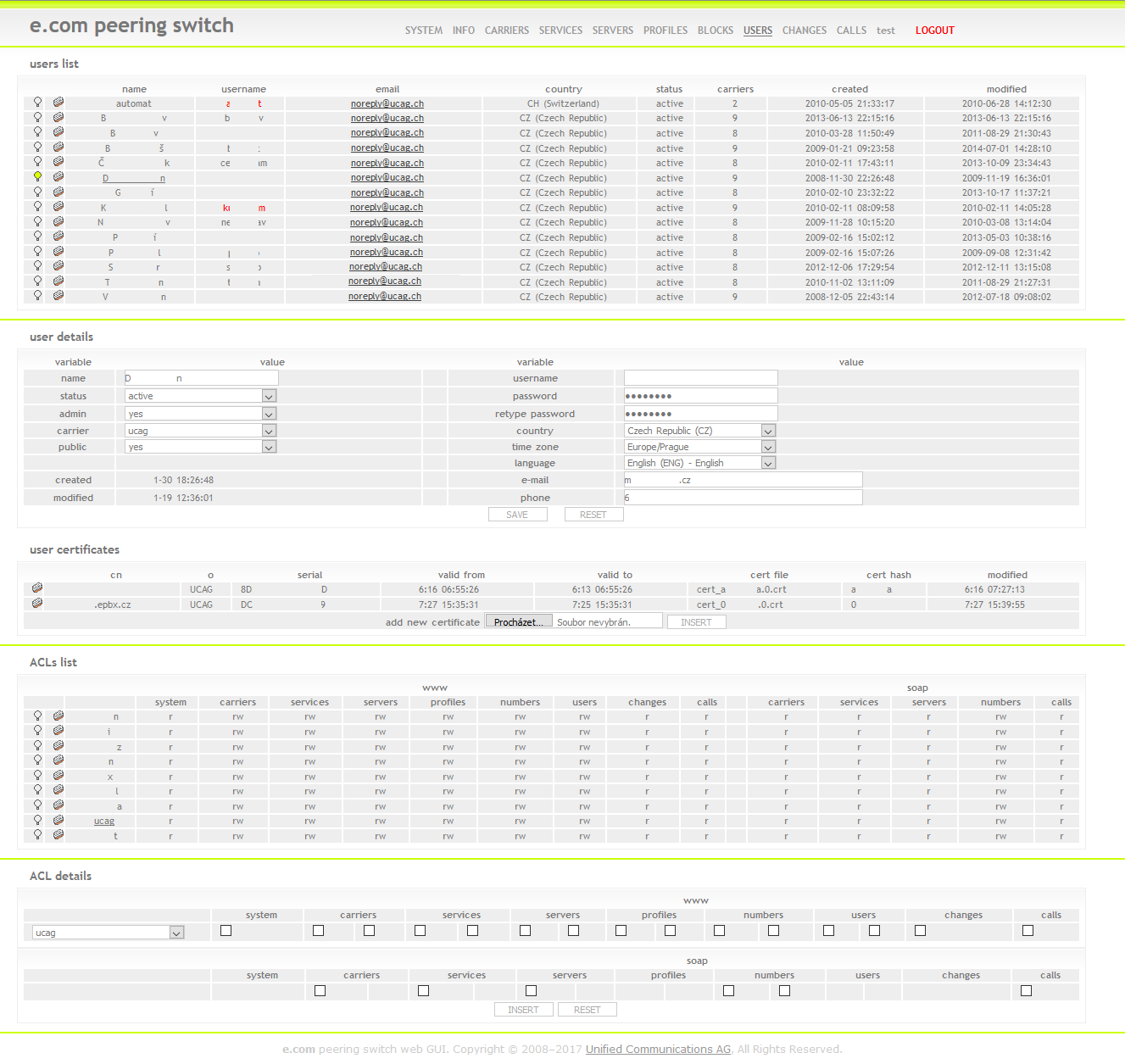

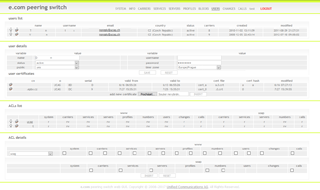

e.com peering switch users

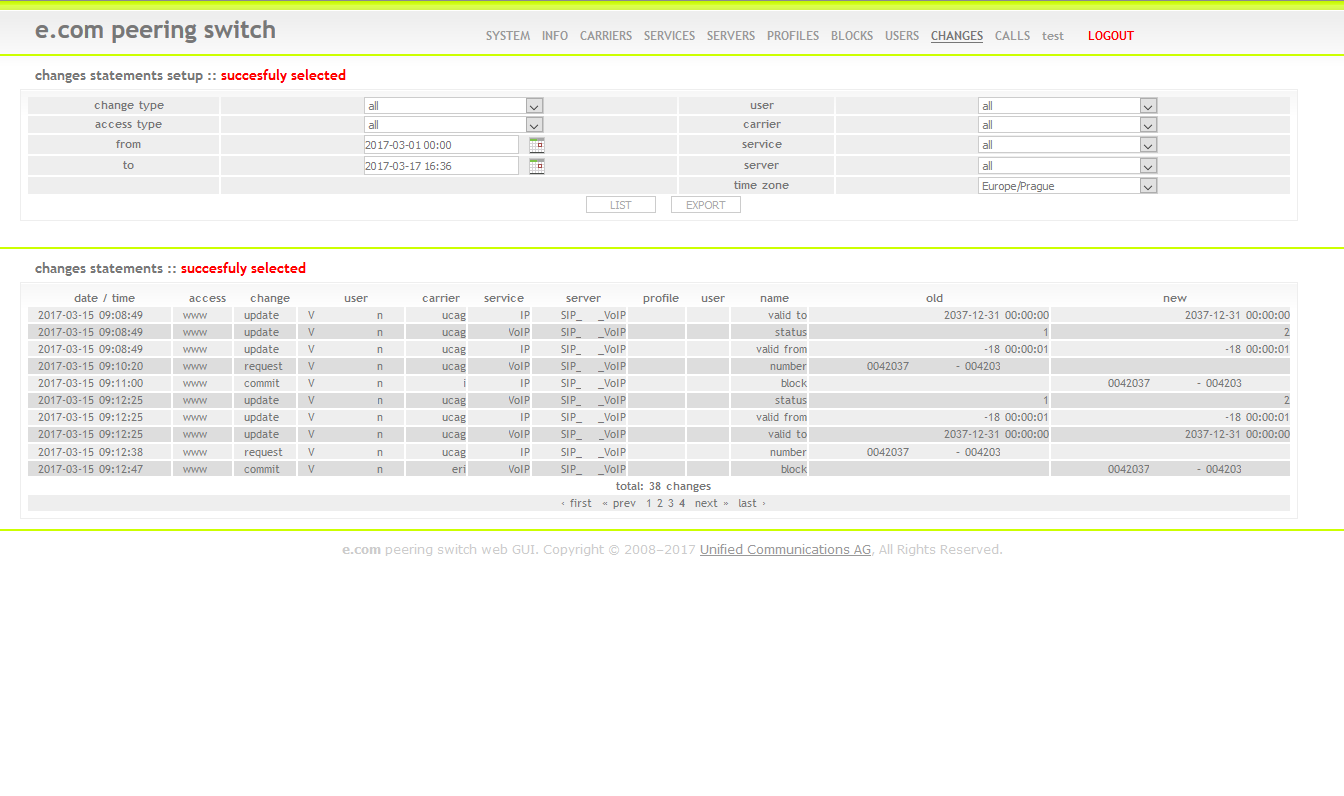

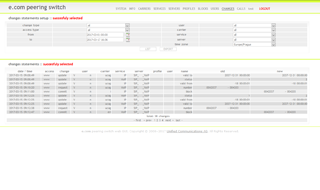

e.com peering switch changes

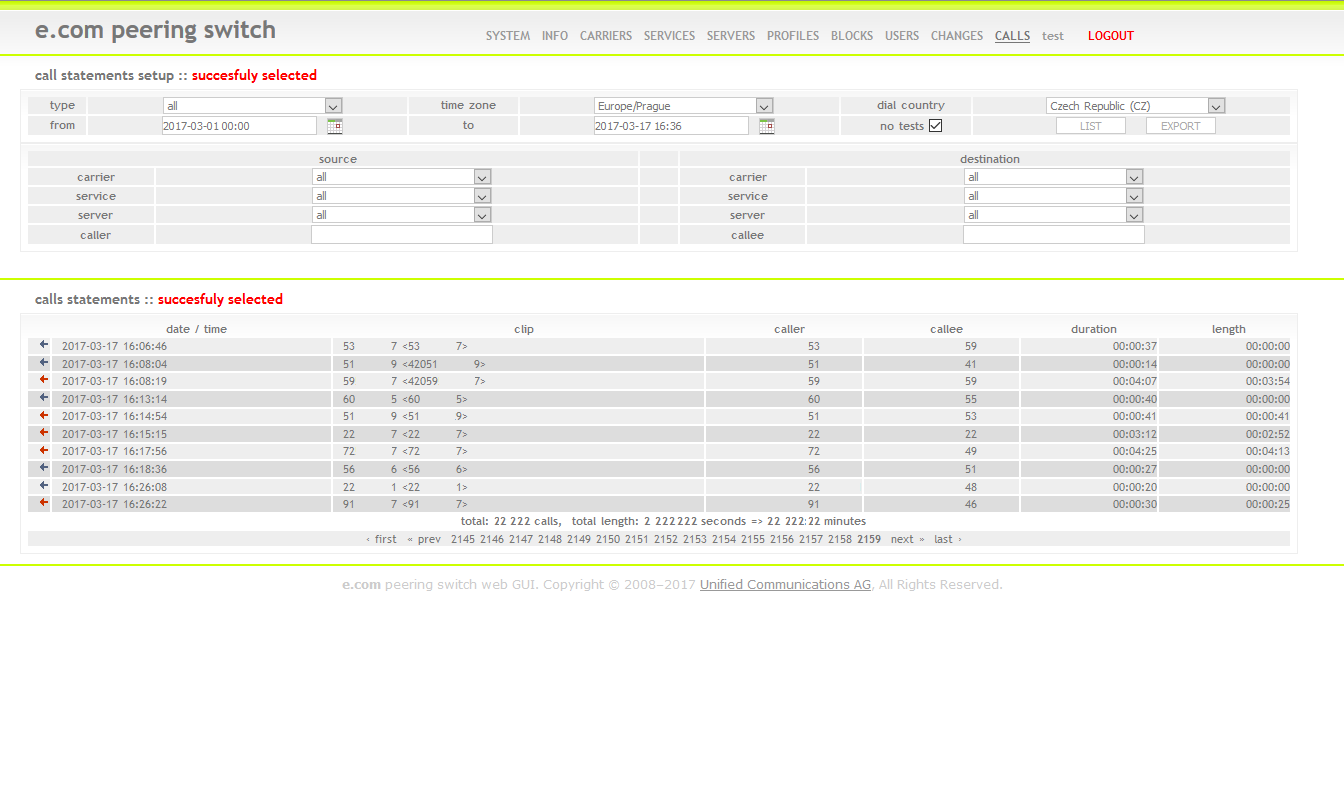

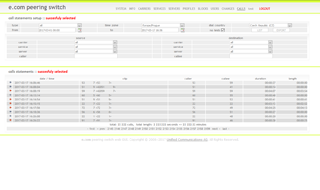

e.com peering switch calls


e.com peering switch tester

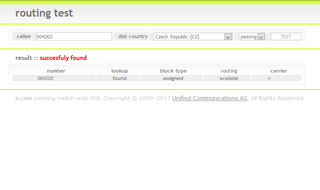

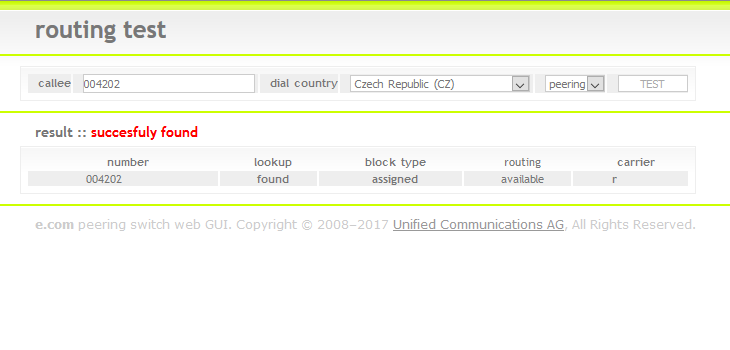

Number tester

e.com peering switch tester 2

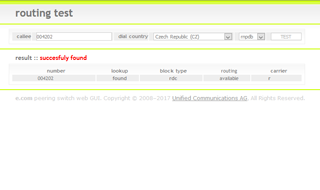

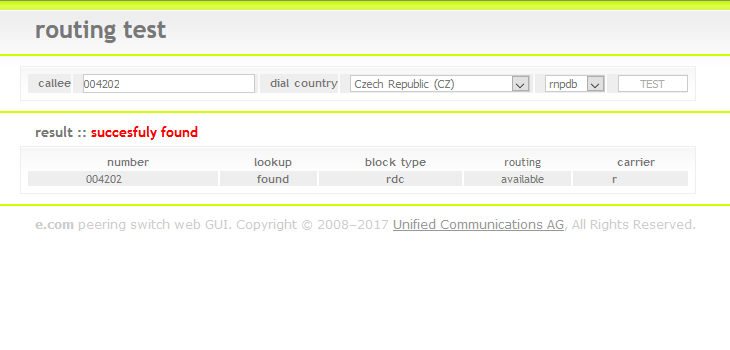

Number tester 2
